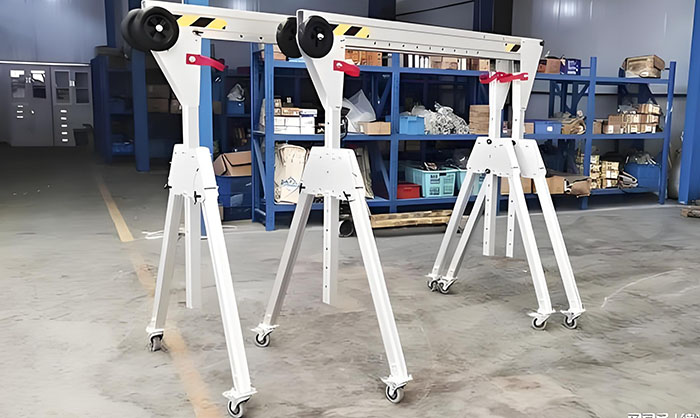

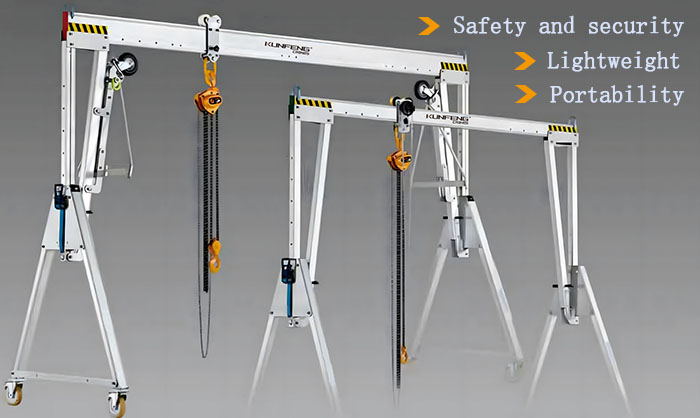

3 Ton Aluminum Gantry

The 3-ton aluminum gantry is an efficient lifting device designed for industrial handling, equipment maintenance and warehousing logistics. It is made of lightweight aluminum alloy and has the characteristics of high strength, corrosion resistance and portability. Its modular design supports rapid assembly and disassembly, and can flexibly adapt to the needs of different operating scenarios. It is an ideal choice to replace traditional steel gantry.

1. Core advantages

① Lightweight and high strength

The aluminum gantry is made of aviation-grade aluminum alloy (such as 6061-T6). While ensuring a rated load of 3 tons, the overall weight is more than 40% lighter than the steel structure, which is convenient for single-person operation and transportation.

② I-shaped or box-shaped crossbeam design optimizes the mechanical structure, ensures uniform force distribution, and avoids deformation risks.

2. Portability and adaptability

① Modular component design, the aluminum gantry can be quickly assembled without professional tools, and supports height and span adjustment (standard span 3-6 meters optional).

② The base is equipped with universal wheels with brakes, which take into account mobile flexibility and operational stability, and is suitable for workshops, warehouses or outdoor temporary operations.

③Corrosion resistance and low maintenance

The surface of the aluminum gantry is anodized, rust-proof and corrosion-resistant, and can adapt to harsh environments such as humidity, acid and alkali. Lubrication-free bearings and stainless steel fasteners reduce maintenance costs and extend service life.

3. Safety guarantee

①The aluminum gantry is equipped with a mechanical limit switch and emergency brake device to prevent overloading or slipping.

②Double insurance design: safety locks at both ends of the beam + anti-drop chains to ensure zero risk during the lifting process.

4. Technical parameters

① Rated load of aluminum gantry: 3 tons (safety factor ≥ 3:1)

② Beam length: 3m/4m/5m/6m (customizable)

③ Net height adjustment: 2.5m-4.5m (manual/electric lifting optional)

④ Movement method: 4 polyurethane universal wheels with brakes

⑤ Material: aluminum alloy frame + steel hook (galvanized)

⑥ Certification standard: CE/ISO 9001 quality management system

The 3-ton aluminum gantry takes "light, safe and efficient" as its core, breaking through the bulky limitations of traditional lifting equipment and becoming the preferred tool for high-frequency and multi-scenario handling operations in modern industry. Its excellent cost-effectiveness and environmental protection characteristics help companies reduce labor costs and improve operating efficiency, while complying with the development trend of green manufacturing.
